\(\renewcommand{\AA}{\text{Å}}\)

improper_style distance command

Accelerator Variant: distance/omp

Syntax

improper_style distance

Examples

improper_style distance
improper_coeff 1 80.0 100.0

Description

The distance improper style uses the potential

\[E = K_2 d^2 + K_4 d^4\]

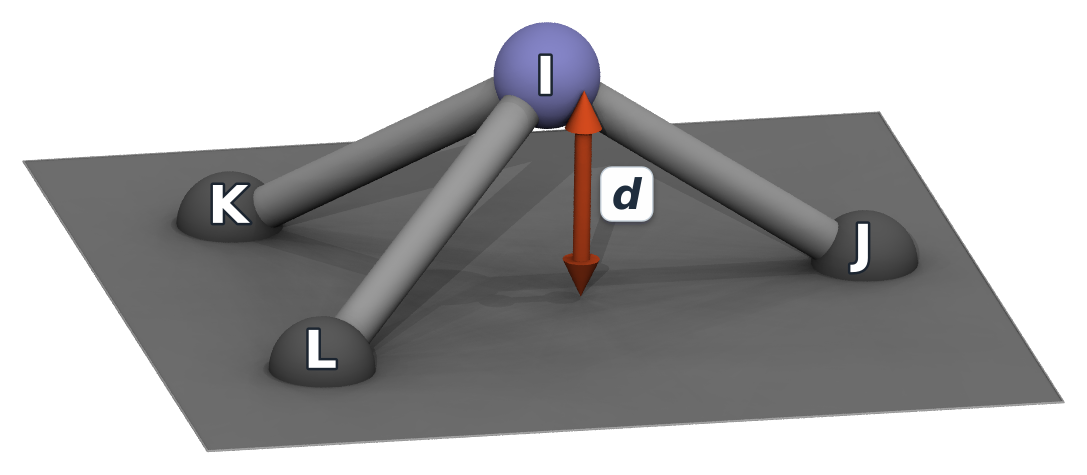

where \(d\) is the distance between the central atom and the plane formed by the other three atoms. If the 4 atoms in an improper quadruplet (listed in the data file read by the read_data command) are ordered I,J,K,L then the I-atom is assumed to be the central atom.

Note that defining 4 atoms to interact in this way, does not mean that bonds necessarily exist between I-J, J-K, or K-L, as they would in a linear dihedral. Normally, the bonds I-J, I-K, I-L would exist for an improper to be defined between the 4 atoms.

The following coefficients must be defined for each improper type via the improper_coeff command as in the example above, or in the data file or restart files read by the read_data or read_restart commands:

\(K_2\) (energy/distance^2)
\(K_4\) (energy/distance^4)

Symmetry convention

For the distance improper style, the first atom in the quadruplet is the atom of symmetry; all other atoms are considered interchangeable. This convention is relevant for operations that require knowledge of how atoms are ordered, such as automatic assignment of new improper types by fix bond/react.

Styles with a gpu, intel, kk, omp, or opt suffix are functionally the same as the corresponding style without the suffix. They have been optimized to run faster, depending on your available hardware, as discussed on the Accelerator packages page. The accelerated styles take the same arguments and should produce the same results, except for round-off and precision issues.

These accelerated styles are part of the GPU, INTEL, KOKKOS, OPENMP, and OPT packages, respectively. They are only enabled if LAMMPS was built with those packages. See the Build package page for more info.

You can specify the accelerated styles explicitly in your input script by including their suffix, or you can use the -suffix command-line switch when you invoke LAMMPS, or you can use the suffix command in your input script.

See the Accelerator packages page for more instructions on how to use the accelerated styles effectively.

Restrictions

This improper style can only be used if LAMMPS was built with the EXTRA-MOLECULE package. See the Build package doc page for more info.

Default

none
