fix graphics/labels command
Syntax
fix ID group-ID graphics/labels Nevery mode keyword args ...
ID, group-ID are documented in fix command
graphics/labels = style name of this fix command
Nevery = update graphics information every this many time steps
zero or more keyword/args groups may be appended
keyword = image or text
image filename x y z keyword args = display image in visualization filename = name of the image file x, y, z = position where the center of the image is located in the visualization any of x, y, or z can be a variable (see below) one or more keyword/arg pairs may be appended keyword = scale or transcolor scale value = the image is scaled by this value (default 1.0), can be a variable (see below) transcolor arg = select color for transparency: auto or none or r/g/b auto = uses the color in the lower left corner of the image for transparency none = disables transparency r/g/b = provide three integers in the range 0 to 255 to select transparancy color in RGB color space text labeltext x y z keyword args = display text in visualization labeltext = text for the label, must be quoted if it contains whitespace x, y, z = position where the center of the text is located in the visualization any of x, y, or z can be a variable (see below) keyword = fontcolor or framecolor or backcolor or transcolor or size fontcolor arg = select color for text: white (default) or black or r/g/b white = uses white black = uses black r/g/b = provide three integers in the range 0 to 255 framecolor arg = select color for frame around text: silver (default) or darkgray or white or black or r/g/b silver = uses a very light gray darkgray = uses a very dark gray white = uses white black = uses black r/g/b = provide three integers in the range 0 to 255 backcolor arg = select color for background of the text: silver (default) or darkgray or white or black r/g/b silver = uses a very light gray darkgray = uses a very dark gray white = uses white black = uses black r/g/b = provide three integers in the range 0 to 255 transcolor arg = select color for transparency: silver (default) or darkgray or white or black or none or r/g/b silver = uses a very light gray darkgray = uses a very dark gray white = uses white black = uses black none = disables transparency r/g/b = provide three integers in the range 0 to 255 size value = set the size of the characters (default 24), can be a variable (see below)
Examples
fix pix all graphics/labels 100 image teapot.png 5.0 -1.0 -2.0 transcolor auto
fix pot all graphics/labels 100 image teapot.ppm 1.0 v_ypos v_zpos scale v_prog transcolor 19/92/192
fix lbl all graphics/labels 1000 text "LAMMPS graphics demo" 5.0 -1.0 -2.0 backcolor darkgray framecolor black
fix info all graphics/labels 1000 text "Step: $(step) Angle: ${rot}" 5.0 -1.0 -2.0 size 32
Description
Added in version TBD.
This fix allows to add either images or text as “labels” to dump image created images by using the fix keyword. This can be useful to augment images with additional graphics or text directly and without having to post-process the images. Since the positioning uses the coordinate system of the simulation and because the graphics objects use the depth buffer of the image rasterizer, atoms and other graphics in the “scene” can be located before or behind any text or image label.
The group-id is ignored by this fix.
The Nevery keyword determines how often the graphics data is updated. This should be the same value as the corresponding N parameter of the dump image command. LAMMPS will stop with an error message if the settings for this fix and the dump command are not compatible.
The image keyword reads an image file and adds it to the visualization centered around the provided position and optionally scaled by the provided scale factor. The filename suffix determines whether LAMMPS will try to read a file in JPEG, PNG, or PPM format. If the suffix is “.jpg” or “.jpeg”, then LAMMPS attempts to read the image in JPEG format, if the suffix is “.png”, then lammps attempts to read the image in PNG format. Otherwise LAMMPS will try to read the image in ppm (aka netpbm) format. Not all variants of those file formats are compatible with image reader code in LAMMPS. If LAMMPS encounters an incompatible or unrecognizable file format or a corrupted file, it will stop with an error.
If LAMMPS detects during a run that the file has been changed, it will re-read it. This allows for instance to create a plot using internal LAMMPS data or from processing an output file during the simulation with the matplotlib python module using a python command and fix python/invoke and then embed the resulting image into the dump image output. See below for a minimal example for such a setup.
When using the image keyword, the name of the image file and its position in the “scene” are required arguments. Optional keyword / value pairs may be added:
The scale value determines if the image is scaled before it is added to the dump image output. LAMMPS currently employs a bilinear scaling algorithm.
The transcolor value selects a color for transparency. All pixels in the image with that color will be skipped when the image is rendered. The color is specified as an R/G/B triple with values ranging from 0 to 255 for each channel. There are also two special arguments: auto will pick the color of the pixel in the lower left corner as transparency color and none will disable all transparency processing (this is the default).
The text keyword will process a provided text into a pixmap and adds
it to the visualization centered around the provided position in a
similar fashion as with the image keyword. The requirements for the
text argument are the same as in the fix print
command: it must be a single argument, so text with whitespace must be
quoted; and the text may contain equal style or immediate variables
using the ${name} or $(expression) format. The variables are
evaluated and expanded at every Nevery time step.
When using the text keyword, the text and its position in the “scene” are required arguments. Optional keyword / value pairs may be added:
The size value determines the size of the letters in the text in pixels (approximately) and values between 4 and 512 are accepted. The default value is 24.
There are four color settings: fontcolor or framecolor or backcolor or transcolor. The color can be specified for all of those either as an R/G/B triple with values ranging from 0 to 255 for each channel (e.g. yellow would be “255/255/0”). There are also a few shortcuts for common choices: silver, darkgray, white, black. The default backcolor value is silver.
fontcolor selects the color for the text, default is white
backcolor selects the color for the background, default is silver
framecolor selects the color for the frame around the background, default is silver.
transcolor value selects a color for transparency, default is silver. If this color is the same as any of the other color settings, those pixels are not drawn. Thus with the default settings, the text will be rendered in white without background or frame. The none setting for transcolor disables transparency processing.
When rendering text with transparent background it is recommended to select a similar color but slightly darker or brighter color as background. This will reduce unwanted color effects at the edges due to anti-aliasing.
There may be multiple image or text keywords with their arguments in a single fix graphics/labels command.
The arguments for the positions of an image or text and the scale factor of an image or the size of a text can be specified as equal-style variables, namely x, y, z, scale, or size. If any of these values is a variable, it should be specified as v_name, where name is the variable name. In this case, the variable will be evaluated each nevery timestep, and its value used to position and resize the image or text. Please see the documentation of the fix graphics/objects command for a more detailed discussion on using variables with graphics objects.
Dump image info
The fix graphics/labels command is designed to be used with the fix keyword of dump image. The fix adds images or text to the visualization.
The color style setting for the fix in the dump image has no effect on either image or text labels. The transparency is by default fully opaque and can be changed with dump_modify ftrans.
The fflag1 and fflag2 settings of dump image fix are ignored.
Including a “dynamic” image
The LAMMPS input commands below provide a demonstration for creating and updating a plot during a run and importing it into a visualization. This requires to compile LAMMPS with the PYTHON package and also compile and install the LAMMPS Python module.
The first python command loads the matplotlib and LAMMPS Python modules and configures matplotlib to use the non-interactive ‘agg’ backend for creating image files.
The second python command defines the myplot()
Python function that is supposed to be called regularly during the run
from fix python/invoke. This function has to
accept two arguments, the LAMMPS object pointer and an integer as
required by the fix. The LAMMPS object pointer can be utilized to query
the running LAMMPS instance about internal data. In this example, we
only retrieve the LAMMPS version and add it to the plot title. By
default, plots have an opaque white background and black lines and text.
In order to overlay the plot as a transparent image, all lines and text
are set to use the color white, while backgrounds are set to use a very
bright gray (to minimize anti-aliasing artifacts when deleting the
background pixels).
The two fix commands invoke the python function and read and make the resulting PNG format image available to dump image. The plot is updated only for every 10th dumped image.
The final lines are dump image commands for integrating the generated plot into the visualization of the atom.
python source here """
import matplotlib
matplotlib.use('agg')
import matplotlib.pyplot as plt
from lammps import lammps
"""
python myplot input 2 SELF 0 format pi here """
def myplot(lmpptr, vflag):
lmp = lammps(ptr=lmpptr)
fig, ax = plt.subplots(facecolor=(0.9,0.9,0.9),edgecolor='white')
ax.set_facecolor((0.9,0.9,0.9))
ax.set_title('Demo Plot: LAMMPS version ' + str(lmp.version()) ,color='white')
ax.set_xlabel('Time',color='white')
ax.set_ylabel('Value',color='white')
ax.tick_params(colors='white')
for spine in ax.spines.values():
spine.set_edgecolor('white')
ax.plot([1,2,3,4,5,6],[2,3,2.5,3.1,2.8,3.0],color='white', linestyle='--')
fname = 'myplot.png'
plt.savefig(fname,dpi=180)
plt.close()
"""
fix plot all python/invoke 1000 post_force myplot
fix label all graphics/labels 100 image myplot.png 20.0 9.0 10.0 transcolor auto scale 0.5
dump viz all image 100 image-*.png type type size 800 800 view 80 10 box yes 0.02 &
fsaa yes shiny 0.1 ssao yes 23154 0.8 zoom 1.4 fix label type 0 0
dump_modify viz pad 6 backcolor2 gray backcolor darkgray boxcolor silver

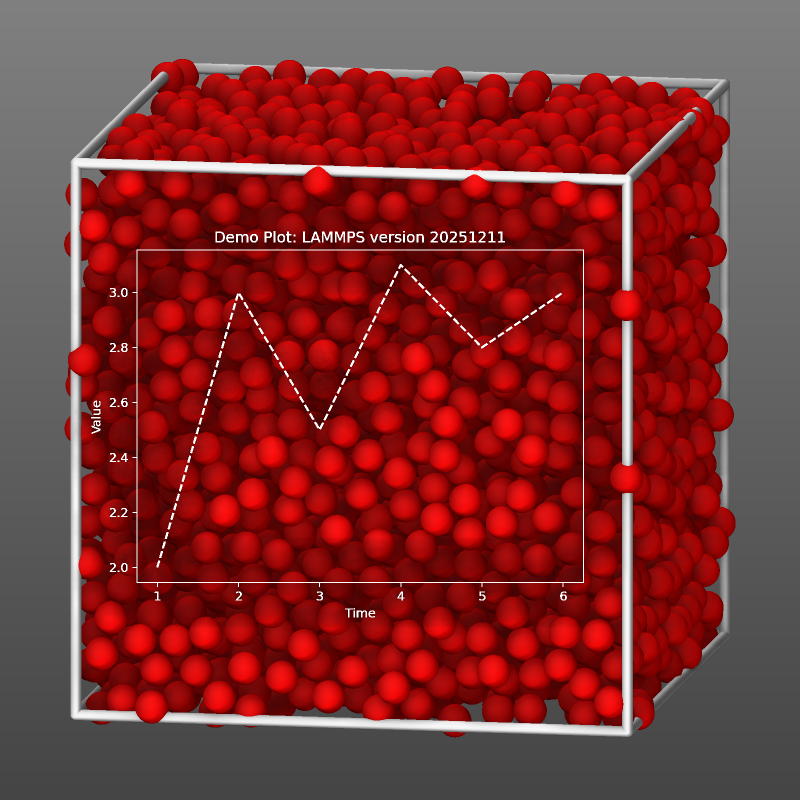

Example image output for adding the above commands to the melt example.
Restart, fix_modify, output, run start/stop, minimize info
No information about this fix is written to binary restart files.
None of the fix_modify options apply to this fix.
Restrictions
This fix is part of the GRAPHICS package. It is only enabled if LAMMPS was built with that package. See the Build package page for more info.
To read JPEG or PNG format images, support for the corresponding graphics libraries must have been compiled and linked into LAMMPS. Please see the instructions for building LAMMPS with the GRAPHICS package for more information on how to do that.
Default
transcolor = “none” for image and “silver” for text, scale = 1.0, fontcolor = white, backcolor = silver, framecolor = silver, size = 24
