fix graphics/lines command

Syntax

fix ID group-ID graphics/lines Nevery Nrepeat Nfreq Nlength

  • ID, group-ID are documented in fix command

  • graphics/lines = style name of this fix command

  • Nevery = retrieve unwrapped position information every this many timesteps

  • Nrepeat = number of times to use the position information for calculating averages

  • Nfreq = store position averages every this many timesteps

  • Nlength = length of averaged position history

Examples

fix  lines  ogroup  graphics/lines 10 50 500 15

Description

Added in version 11Feb2026.

This fix allows to add a trace of averaged atom positions in the fix group to images rendered with dump image using the fix keyword. This kind of position trace is sometimes referred to as “trajectory lines”.

The trace is represented by a chain of connected cylinders where the endpoints are taken from the current atom positions and an internal history of averaged positions of the atoms. The averaging is performed by using fix ave/atom internally on unwrapped atom positions taken from compute property/atom. The Nevery, Nrepeat, and Nfreq values are passed on to the internal fix ave/atom instance for averaging. The averaged unwrapped positions are wrapped back into the simulation box and stored internally using up to Nlength sets. For any additional sets of positions, the then oldest set in the history storage will be overwritten and thus limiting the length of the trace.

The group-ID sets the group ID of the atoms selected to have the selected property represented. This may not be a dynamic group.

The Nfreq value determines how often the graphics data is updated. This should be the same value as the corresponding N parameter of the dump image command. LAMMPS will stop with an error message if the settings for this fix and the dump command are not compatible.

Dump image info

Fix graphics/lines is designed to be used with the fix keyword of dump image. The fix will add a connected chain of cylinders based on the averaged position history of the atoms in the fix group to the rendered image.

The color of the cylinders is by default that of the atoms when using color styles “type” or “element”. With color style “const” the default value of “white” can be changed using dump_modify fcolor. The transparency is by default fully opaque and can be changed with dump_modify ftrans.

The fflag1 setting of dump image fix determines whether the cylinder objects are capped with spheres: 0 means no caps, 1 means the lower end is capped, 2 means the upper end is capped, and 3 means both ends are capped.

The fflag2 setting determines the diameter of the cylinders.

The following input can be added to the examples/obstacle/in.obstacle example input after adjusting its create_box and mass commands to support 4 atom types instead of 3.

# select atoms to trace and assign atom type 4 so they have a different color (yellow)
region   trace block 2 3 1.25 8.75 INF INF
group    trace region trace
set      group trace type 4

# create trajectory lines by averaging positions over 10 MD steps each 10 steps apart
fix      lines trace graphics/lines 10 10 100 25
# visualize the trace in silver with a diameter of 0.6 which is half of that of the atoms
dump     viz   all image 100 obstacle-*.png type type size 800 600 zoom 2.5 center s 0.50 0.7 0 &
                                        shiny 0.5 fsaa yes box no 0.025 fix lines const 1 0.6
dump_modify  viz  pad 6 backcolor darkgray adiam * 1.2 fcolor lines silver

lines1 lines2 lines3

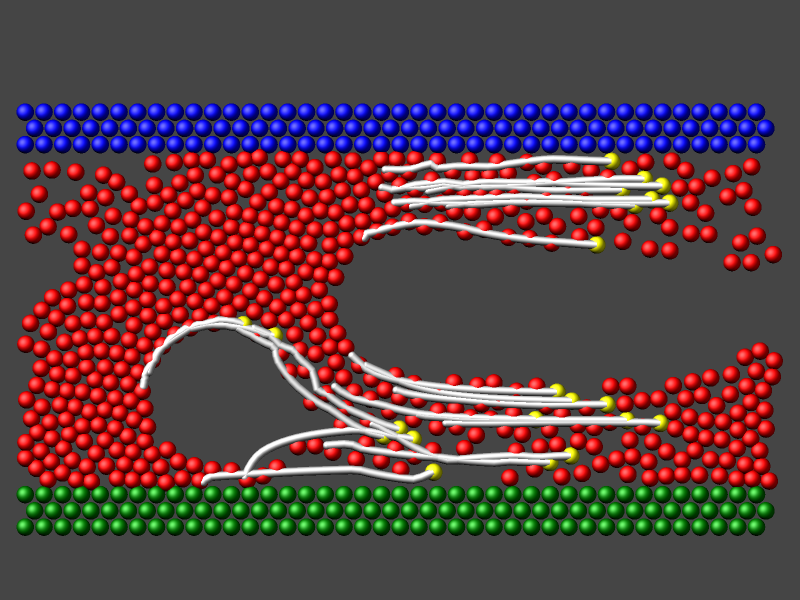

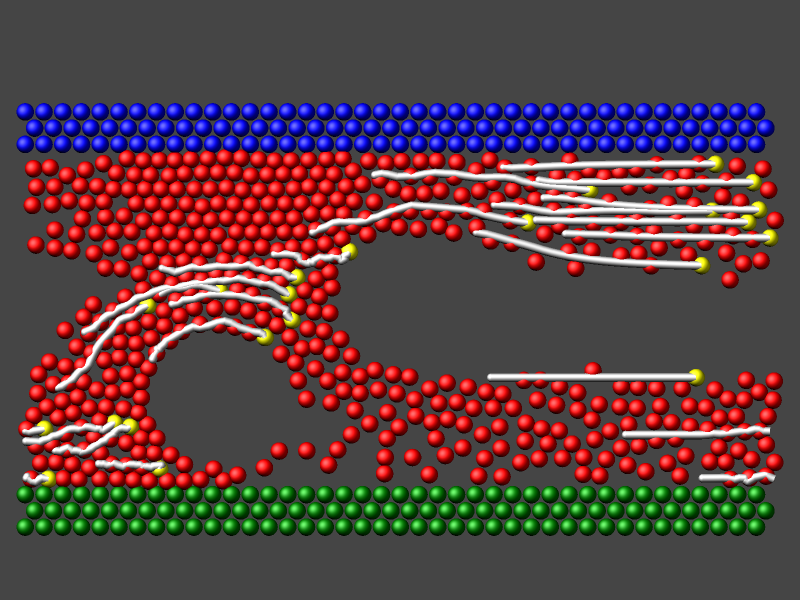

(Trajectory lines visualization example. Click to see the full-size images)

Restart, fix_modify, output, run start/stop, minimize info

This fix writes its current status to binary restart files. See the read_restart command for info on how to re-specify a fix in an input script that reads a restart file, so that the fix continues in an uninterrupted fashion. Upon restarting, the fix checks that the Nevery, Nrepeat, Nfreq, and Nlength settings are the same as when the restart file was written. Otherwise it stops with an error.

None of the fix_modify options apply to this fix.

This fix computes a global scalar representing the current length of the position history vector.

Restrictions

This fix is part of the GRAPHICS package. It is only enabled if LAMMPS was built with that package. See the Build package page for more info.

Defaults

none
